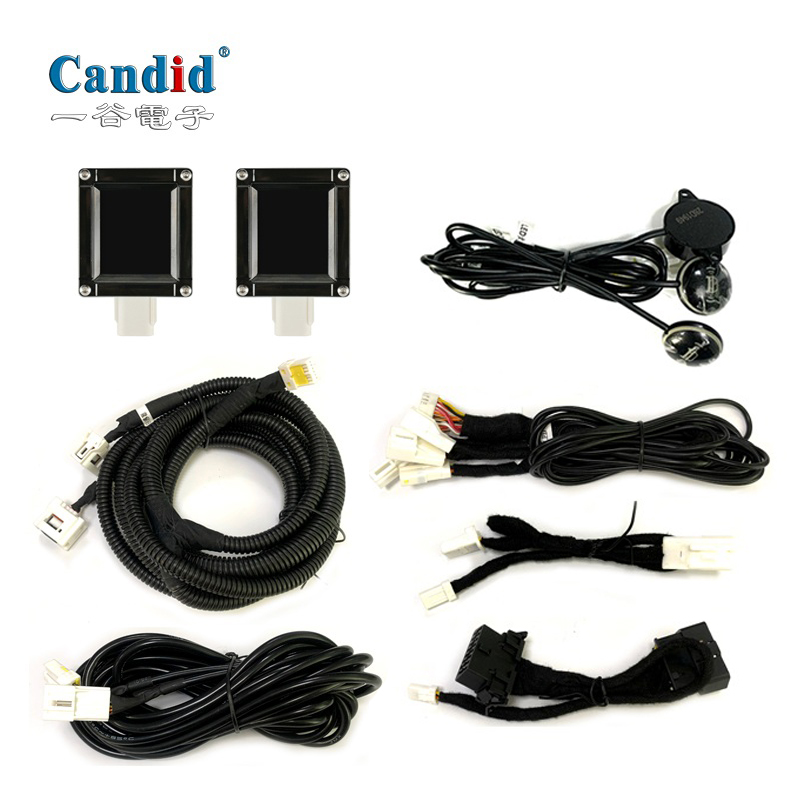

أنظمة الكشف عن النقاط العمياء برادار الميكروويف مع RCTA
Features:
This microwave radar blind spot detection systems (BSD system) is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change and reversing, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
This microwave radar blind spot detection systems (BSD system) is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver know the safe timing for lane change and reversing, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
ملامح

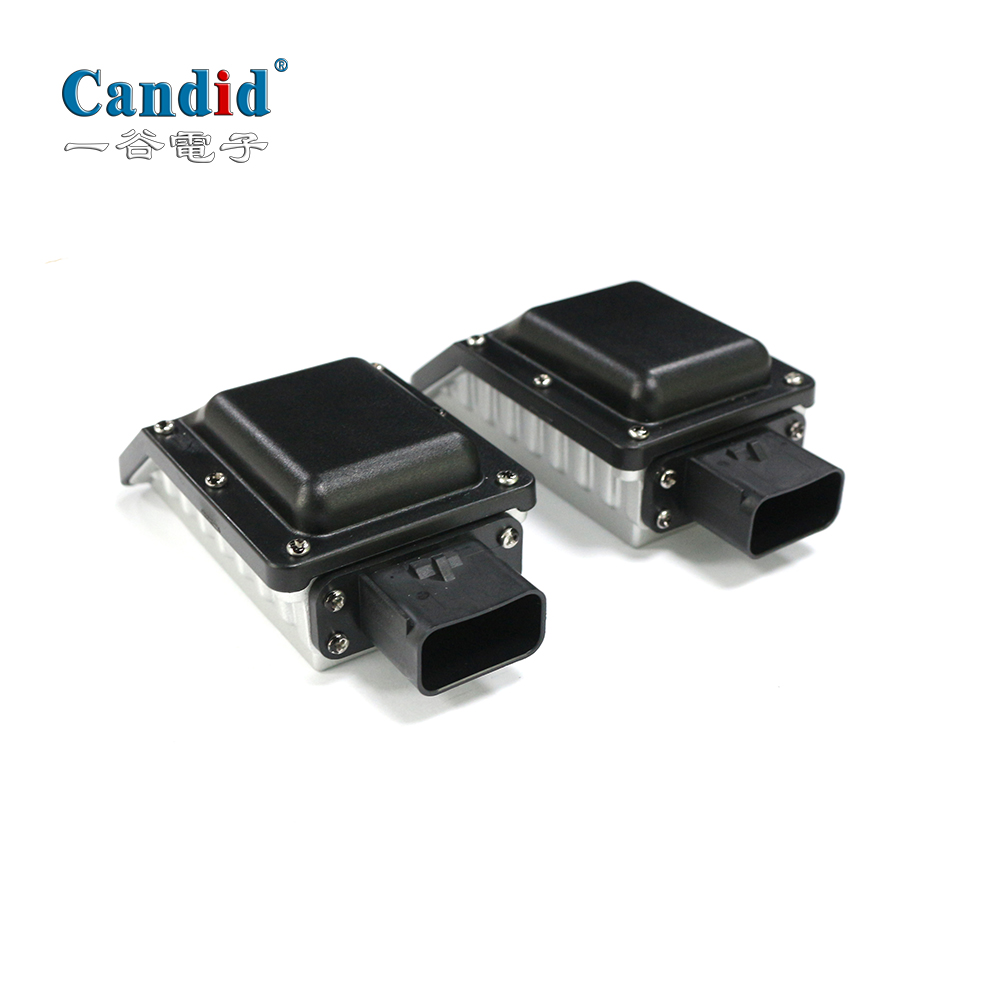

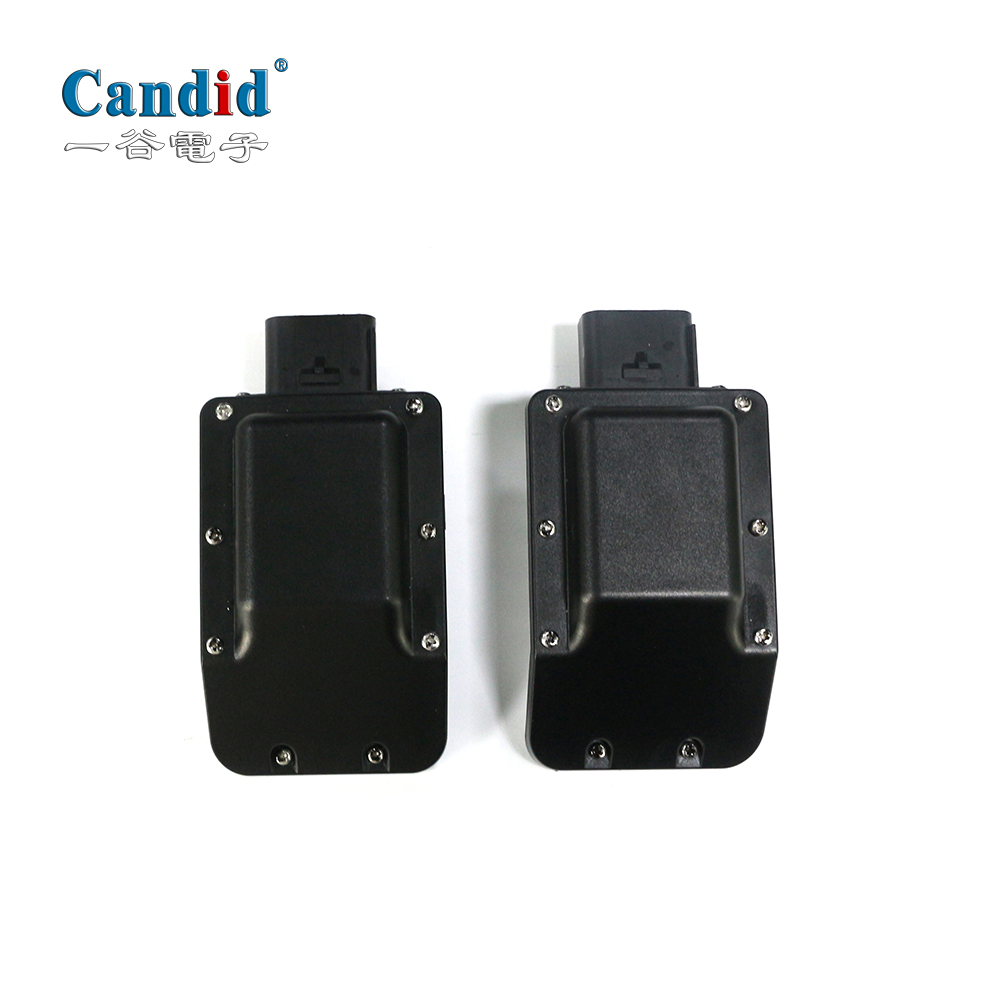

24G Hz, high sensitive microwave radar sensor
With built-in RCTA function
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area

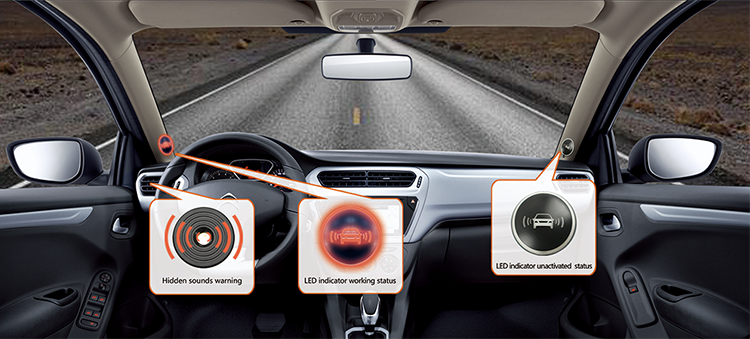

With LED light warning and buzzer sound warning, dual alert assurance

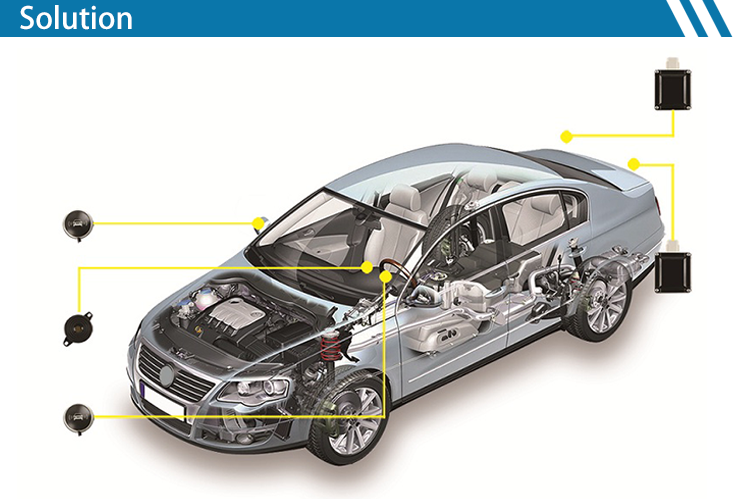

Hidden and non-drilling installation, no impact on vehicle’s appearance
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
With built-in RCTA function
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Wide Detection range: 3x15 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
24g microwave radar bsd
المواصفات
تردد التشغيل | 24 جيجا هرتز |
نطاق الكشف الجانبي | 3 أمتار |
نطاق الكشف الخلفي | 15 متر |
زاوية أفقية | 120º |
تحديث المعدل المستهدف | 50 هرتز |
دقة نطاق الكشف | 0.36 م |
نطاق خطأ زاوية الكشف | 1º |
نطاق خطأ الكشف عن السرعة النسبية | ±0.25 م/ث |
السرعة النسبية للإنذار | عندما تكون السرعة النسبية للمركبة المستهدفة مقابل السيارة أقل من 140 كم / ساعة ، يعمل النظام. |
الحد الأدنى للسرعة المستهدفة المكتشفة | السرعة النسبية للهدف أكثر من 2.5 كم / ساعة. |
وقت الاستجابة | 50 مللي ثانية |
نفق الهوائي | 1 طن × 1 ص |
خرج إرسال الهوائي | 12 ديسيبل ميلي واط |
تصنيف IP | آي بي 67 |
جهد التشغيل | 9 فولت - 16 فولت (12 فولت نموذجي) |
استهلاك الطاقة | ≤500mA @12VDC |
درجة حرارة التشغيل | -40 درجة مئوية - + 85 درجة مئوية |
درجة حرارة التخزين | -40 درجة مئوية - + 95 درجة مئوية |
