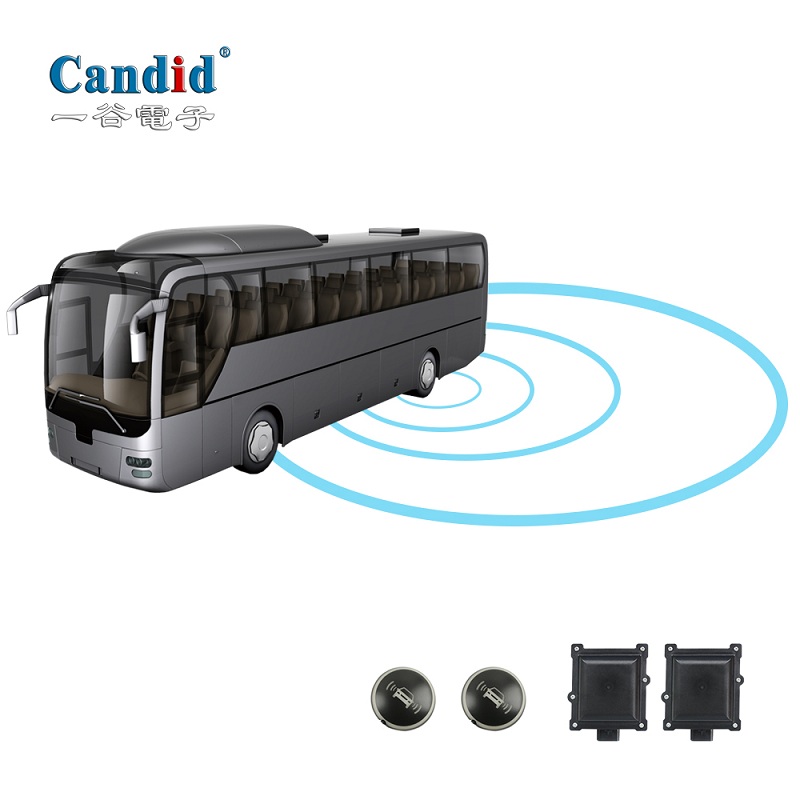

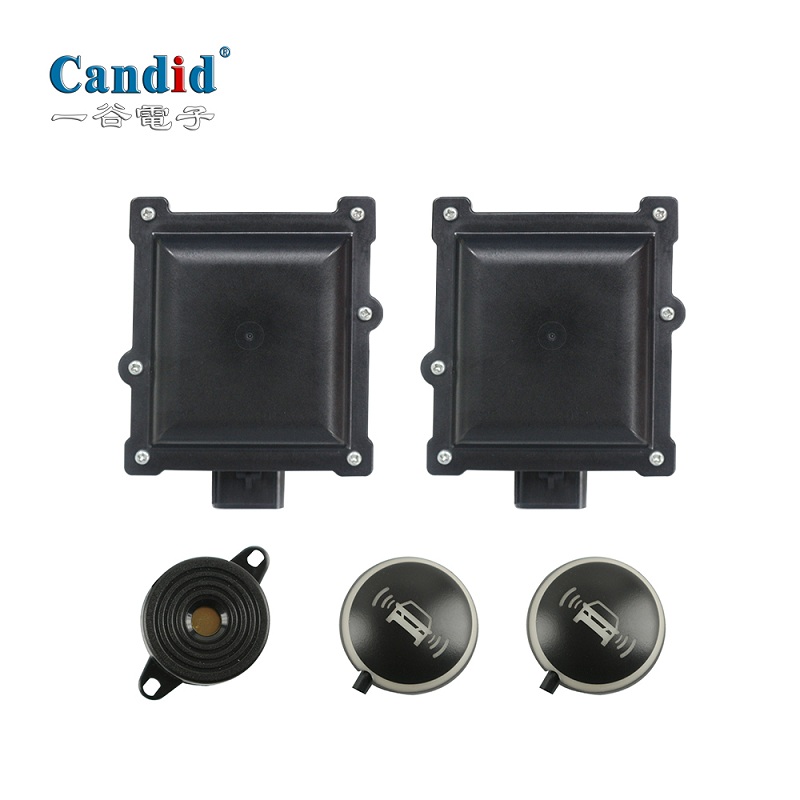

رادار الميكروويف BSD (77G)
Features:
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver knows the safe timing for lane change and reversing, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
This BSD (blind spot detection) system is used for detecting the objects in the blind area of the rear and side field of the vehicle when you are driving. When a vehicle (or other moving object) enters into the detection range, the BSD system will alert the driver with LED light blinking or/and Buzzer sound beeping to let the driver knows the safe timing for lane change and reversing, thus significantly lower the potential risks of collision accidents and save lives. It can also be applied for the purpose of vandalproof and antiriot for safeguard when you stay in a car.
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
.jpg?imageView2/1/w/116/w/74)
ملامح
77G Hz, super high sensitive microwave radar sensor
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Super Wide Detection range: 3x80 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance

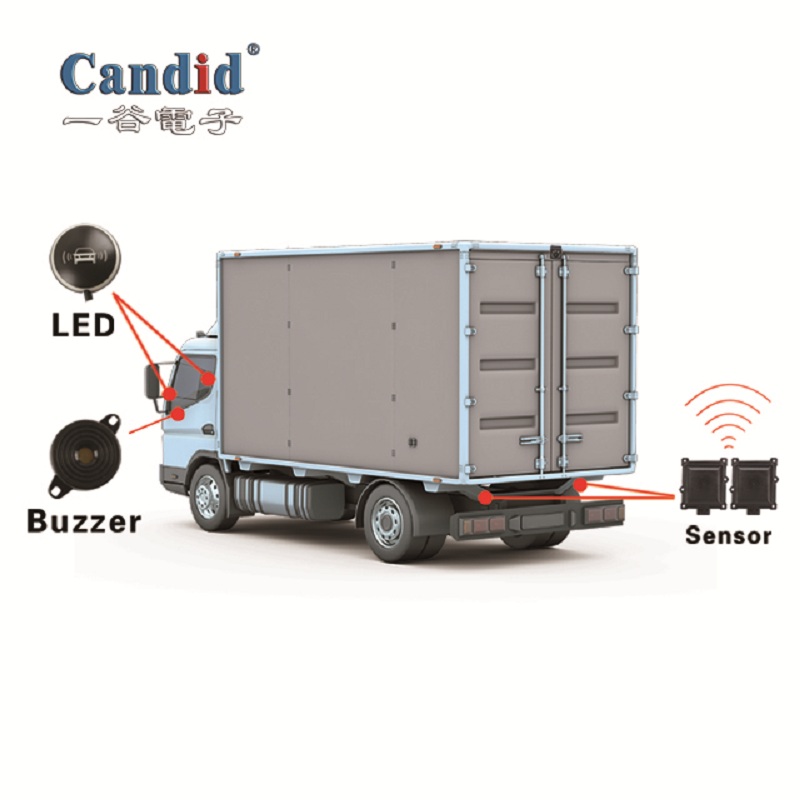

Hidden and non-drilling installation, no impact on vehicle’s appearance
With built-in RCTA detection for parking and reversing vehicle
Vehicle door open warning (DOW) function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
77g microwave radar bsd
Work under all kinds of weather and brightness condition
Suitable for both high speed and low speed driving status
Super Wide Detection range: 3x80 meters covering side and rear blind area
With LED light warning and buzzer sound warning, dual alert assurance
Hidden and non-drilling installation, no impact on vehicle’s appearance
With built-in RCTA detection for parking and reversing vehicle
Vehicle door open warning (DOW) function optional
OE quality standard; extra long-term 3 years warranty
pass EMC & FCC certification testing
77g microwave radar bsd
المواصفات
| تردد التشغيل | 76-81 جيجا هرتز |
| نطاق الكشف الجانبي | 3 أمتار |
| نطاق الكشف الخلفي | 80 متر |
| زاوية أفقية | 120º |
| تحديث المعدل المستهدف | 50 هرتز |
| دقة نطاق الكشف | 0.36 م |
| نطاق خطأ زاوية الكشف | 1º |
| نطاق خطأ الكشف عن السرعة النسبية | ±0.25 م/ث |
| السرعة النسبية للإنذار | عندما تكون السرعة النسبية للمركبة المستهدفة مقابل السيارة أقل من 140 كم / ساعة ، يعمل النظام. |
| الحد الأدنى للسرعة المستهدفة المكتشفة | السرعة النسبية للهدف أكثر من 2.5 كم / ساعة. |
| وقت الاستجابة | 50 مللي ثانية |
| نفق الهوائي | 2 تكساس 4R |
| خرج إرسال الهوائي | 12 ديسيبل ميلي واط |
| تصنيف IP | آي بي 67 |
| جهد التشغيل | 9 فولت - 16 فولت (12 فولت نموذجي) |
| استهلاك الطاقة | ≤500mA @12VDC |
| درجة حرارة التشغيل | -40 درجة مئوية - + 85 درجة مئوية |
| درجة حرارة التخزين | -40 درجة مئوية - + 95 درجة مئوية |
التطبيقات
